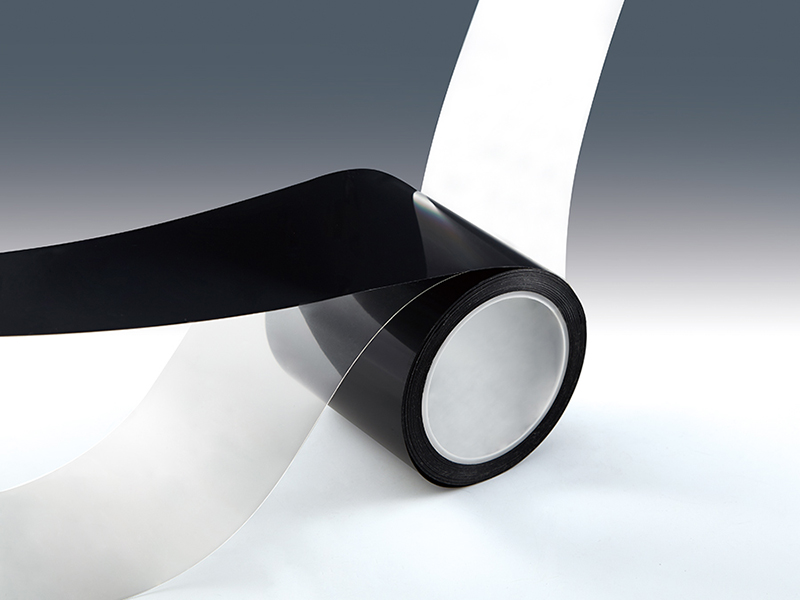

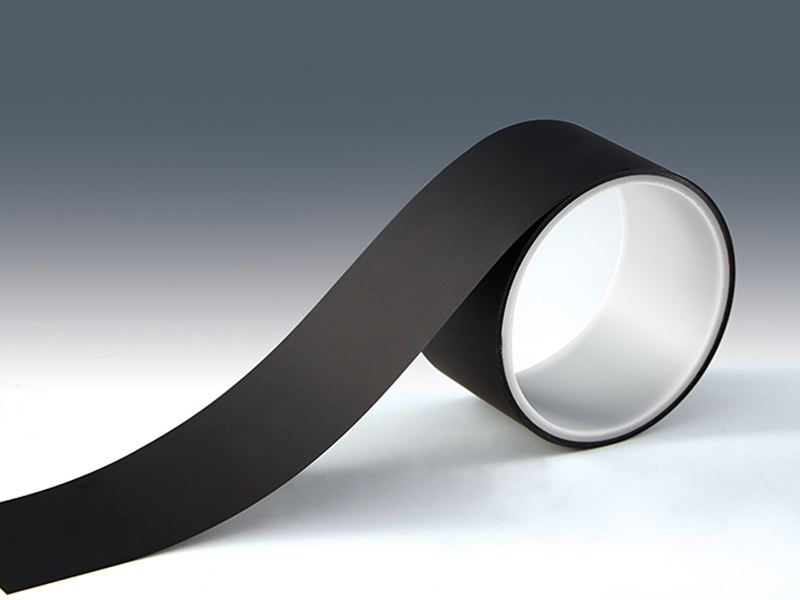

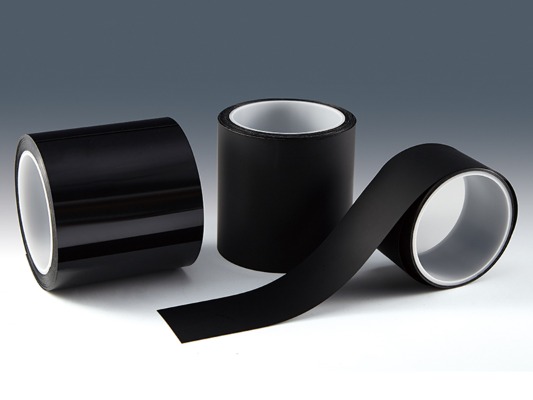

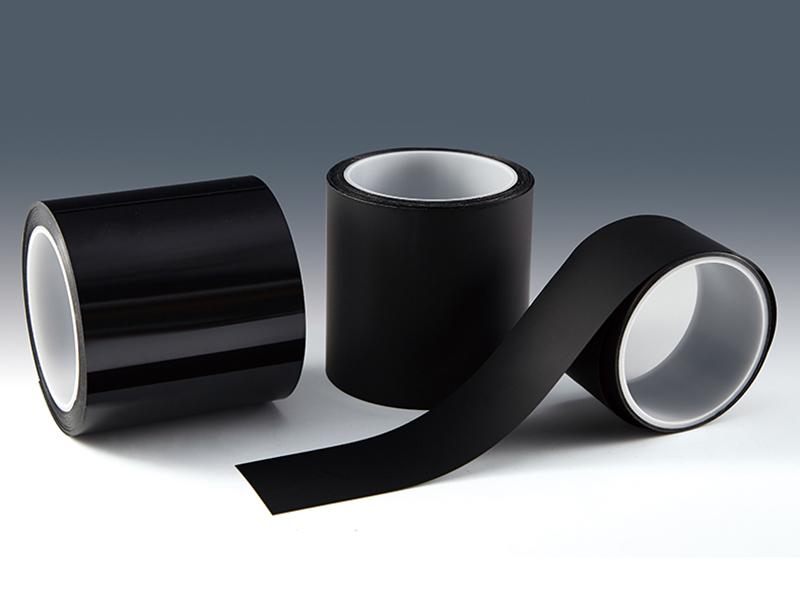

Black PET-based tape
This kind is a black, double-sided self-adhesive tape used PET as backing and double sided coated with solvent acrylic adhesive.
Features especially:
Good shielding performance,module edge shielding.
Excellent compliment and stress relaxation to uneven surface.
Excellent bonding ability,good anti-warping performance.
Double Sided Black Pet Film Tap

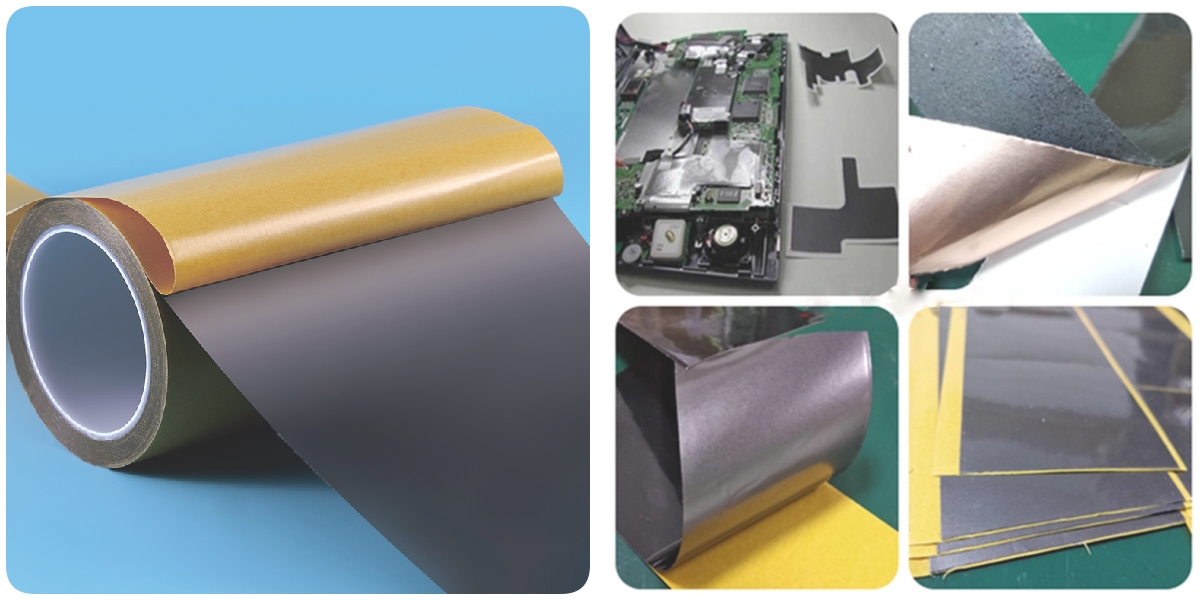

Application fields:
Bonding of LCD screen,backlight module.
Bonding of touch screen or windows edge.
Bonding of graphite to protect.
Product construction:
| Backing material | Black PET film |
| Type of adhesive | solvent acrylic |
| Total thickness | 0.03mm/0.05mm/0.08mm/0.1mm/0.12mm/0.15mm/0.2mm |
| Color | Black |
| Release liner | White paper/Yellow glassine paper |
Properties:
| Item | Backing | Thickness(mm) | Color | 180°Peeling force(N/in) | Temperature resistance（℃） | Size |
| 5983B | PET | 0.03 | Black | ≥9 | ﹣20～120 | 1240mm*100M |
| 5972B | PET | 0.05 | Black | ≥13 | ﹣20～120 | 1240mm*100M |
| 5982B | PET | 0.1 | Black | ≥15 | ﹣20～120 | 1240mm*100M |
| 5967B | PET | 0.15 | Black | ≥18 | ﹣20～120 | 1240mm*50M |
| 5965B | PET | 0.2 | Black | ≥20 | ﹣20～120 | 1240mm*50M |
